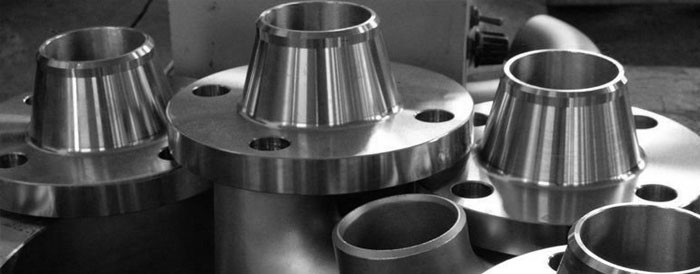

Purchase Monel 400 and K500 flanges from the leading manufacturer , STAINLESS INDIA. We offer ASTM B564 slip-on, weld neck, blind, threaded, and RTJ flanges. Global shipping is available along with test certificates.
STAINLESS INDIA is a reputable manufacturer, stockist, and exporter of Monel Flanges, providing high-quality Monel 400 and Monel K500 flanges suitable for high-corrosion, high-temperature and offshore applications. We also manufacture Monel Pipes, Monel Sheets & Plates, Monel Round Bars, Monel Butt Weld Fittings and Monel Forged Fittings for complete piping systems. Our flanges are engineered to provide exceptional mechanical strength and outstanding resistance to seawater, acids, alkaline solutions and hydrofluoric environments.
All flanges are produced in compliance with ASTM B564, ASME B16.5, B16.47, and B16.48 standards, guaranteeing international quality and precise dimensional accuracy.
Our Monel 400 & Monel K500 Flanges are precision engineered to provide outstanding corrosion resistance, long-lasting durability and exceptional strength in demanding industrial environments. For complete piping solutions, STAINLESS INDIA also supplies Monel Pipes, Monel Butt Weld Fittings, Monel Forged Fittings and Nickel Alloy Flanges manufactured according to international standards.
Monel flanges are high-performance nickel-copper alloy pipe flanges designed for severe corrosion environments. Manufactured from Monel 400 and Monel K500 grades, they offer exceptional resistance to seawater, hydrofluoric acid, alkalis and high-temperature service. STAINLESS INDIA manufactures slip-on, weld neck, blind, socket weld, threaded, lap joint and ring type joint (RTJ) flanges according to ASTM B564, ASME B16.5 and ASME B16.47 standards for offshore, marine, petrochemical, power generation and chemical processing industries worldwide.
Although stainless steel performs well in many industrial environments, Monel provides significantly better resistance to seawater, hydrofluoric acid, alkaline chemicals and chloride attack. This makes Monel flanges the preferred choice for offshore platforms, marine engineering, desalination plants and aggressive chemical processing facilities where maximum corrosion resistance and long service life are required.
| Family | Grade Specifications & Features |
|---|---|
|
Monel 400
|
Excellent resistance to seawater and steam at high temperatures. Widely used for standard chemical and marine applications. |
|
Monel K500
|
Offers the same corrosion resistance as 400 but with increased strength and hardness through age-hardening. Ideal for high-stress components. |
| Size Range | ½” to 48” (DN15–DN1200) |
| Standards | ASTM B564 / ASME SB564 | Dimensions: ANSI B16.5, B16.47 Series A & B, DIN, EN, BS |
| Pressure Ratings | Class 150#, 300#, 600#, 900#, 1500#, 2500# (PN6 to PN400) |
| Face Types | Raised Face (RF), Flat Face (FF), Ring-Type Joint (RTJ) |
| Certifications | EN 10204 3.1 / 3.2 MTC NACE MR0175 Third Party (SGS, BV, TUV) |
Monel alloys are nickel-copper alloys offering excellent corrosion resistance and outstanding mechanical strength.
| Grade | Nickel | Copper | Iron | Manganese | Carbon |
|---|---|---|---|---|---|
| Monel 400 | 63% min | 28–34% | 2.5% max | 2% max | 0.30% max |
| Monel K500 | 63% min | 27–33% | 2% max | 1.5% max | 0.25% max |
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|---|
| Monel 400 | 550 MPa | 240 MPa | 35% | 75 HRB |
| Monel K500 | 965 MPa | 690 MPa | 20% | 35 HRC |
Our Monel 400 and Monel K500 flanges are manufactured using premium quality raw materials sourced from approved mills. Every flange undergoes forging, precision machining, heat treatment where applicable, dimensional inspection and final quality verification before dispatch. Manufacturing complies with ASTM B564, ASME B16.5 and international quality standards.
Every Monel flange supplied by STAINLESS INDIA is inspected before shipment to ensure dimensional accuracy, material compliance and mechanical integrity.
All Monel flanges are packed using export-quality wooden boxes, fumigated crates, bubble wrapping and protective end covers to prevent damage during international transportation.
| Standard | Monel 400 | Monel K500 |
|---|---|---|
| UNS | N04400 | N05500 |
| Werkstoff | 2.4360 | 2.4375 |
| ASTM | B564 | B564 |
| ASME | SB564 | SB564 |
Before purchasing Monel flanges, buyers should verify the required material grade, pressure class, flange facing type, dimensional standard, inspection requirements and certification. Selecting the correct flange according to service conditions helps improve safety, durability and long-term operating performance.
Exceptional resistance to seawater and salt-laden environments, ideal for offshore use.
High strength and superior hardness, particularly in Monel K500 grade variants.
Retains structural integrity and stability even at significantly elevated temperatures.
Remarkable resistance in both acidic and alkaline industrial conditions.
Manufactured to precise tolerances for optimal fit and compatibility with global systems.
Excellent mechanical and impact characteristics for extended service life in harsh settings.
Our Monel 400 & K500 Flanges are precision-engineered to provide outstanding corrosion resistance, long-lasting durability, and exceptional strength in challenging industrial settings. Equipped with advanced manufacturing facilities and international export capabilities, we stand as one of the most dependable suppliers of Monel flanges globally .
ISO 9001:2015 and PED certified manufacturer ensuring 100% tested products.
Reliable supply chain exporting to over 70 countries with secure export packaging.
Huge ready stock of Monel 400 & K500 flanges available for immediate dispatch.
Best-in-market pricing structure with flexible minimum order quantities (MOQ).
Advanced manufacturing facilities ensure rapid turnaround times for critical projects.
Custom manufacturing services available according to specific project blueprints.
We export to more than 70+ countries:
USA • UK • Germany • Italy • UAE • Saudi Arabia • Qatar • Oman • Kuwait • Singapore • Malaysia • Indonesia • Australia • South Africa • Brazil • Mexico • India
Looking for complete nickel alloy piping products? Explore our complete range of Monel Pipes, Monel Round Bars, Monel Sheets & Plates, Monel Butt Weld Fittings, Monel Forged Fittings and Nickel Alloy Flanges.
