Monel Forged Fittings Manufacturer | Monel 400 / K500 Forged Fittings Supplier

STAINLESS INDIA is a prominent producer of Monel 400 and Monel K500 forged fittings.
Get socket weld and threaded elbows, tees, couplings,

As a prominent manufacturer and exporter of Monel forged fittings, we provide Monel 400 and Monel K500 socket weld and threaded fittings. Our products comply with ASTM B564 standards and offer exceptional corrosion resistance, with a global supply network. We invite you to request a quote today!

We are recognized as a reliable manufacturer and exporter of Monel forged fittings, delivering high-quality Monel 400 and Monel K500 fittings that ensure outstanding strength and resistance to corrosion. These fittings are extensively utilized in offshore, chemical, petrochemical, and marine applications. All our fittings adhere to ASTM B564 and ASME standards.

Product Range

Types of Monel Forged Fittings We Manufacture

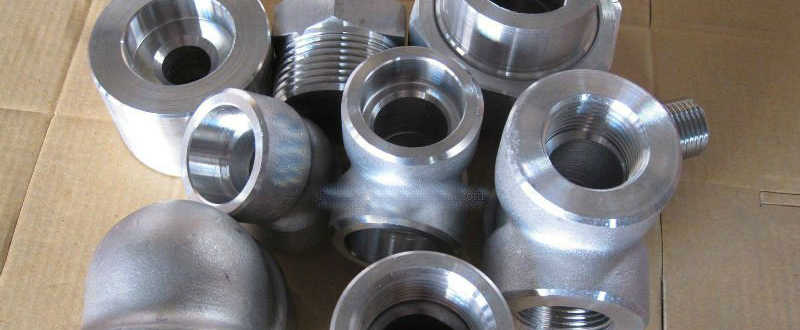

Socket Weld Fittings

High-pressure Socket Weld Elbow (90°/45°), Tees, Crosses, Full & Half Couplings, Unions, and Pipe Caps.

Threaded Fittings

NPT/BSP Threaded Elbows, Tees, Couplings, Unions, and precision-machined Plugs & Bushings.

Marine & Offshore

Specialized Monel 400 forged components designed for seawater, brine, and high-velocity salt environments.

High-Pressure K500

Age-hardened Monel K500 fittings for high-stress industrial applications requiring superior wear resistance.

Available Grades

Family Grade Specifications & Features
Monel 400
UNS N04400 ASTM B564

Excellent resistance to seawater, steam, and alkaline environments. Offers good mechanical properties and is widely used in marine engineering.

Monel K500
UNS N05500 Age-Hardened

Combines 400's corrosion resistance with added strength and hardness through precipitation hardening. Ideal for high-pressure and high-wear scenarios.

Technical Specifications

Size Range 1/8” to 4” (Socket Weld & Threaded)
Standards ASTM B564 / ASME SB564 | Dimensions: ASME B16.11, MSS-SP-79, 83, 95, 97
Class / Pressure 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Thread Types NPT, BSPP, BSPT
Quality Testing PMI Testing, Visual & Dimensional Inspection, NDT (LPI, MPI), Hydrostatic Test
Certifications EN 10204 3.1 NACE MR0175 Third Party Inspection (SGS, TUV, BV)
Technical Superiority

Key Features

Corrosion Mastery

Outstanding resistance to corrosion, acids, seawater, and alkalis.

High Tensile Strength

Exceptional mechanical strength and long-term durability in heavy-use environments.

Extreme Conditions

Ideal for industrial environments with high temperatures and high pressure.

Crack Resistance

Remarkable resistance to stress corrosion cracking (SCC).

Non-Magnetic

Maintains non-magnetic properties and endures in severe severe conditions.

Global Standards

Compliant with ASME, ASTM, NACE, IBR, and PED international standards.

Industries & Applications

Marine & Offshore Platforms
Oil & Gas Refineries
Heat Exchangers & Condensers
Chemical Processing Units
Power Generation
Petrochemical Plants
Pump & Valve Assemblies

Documents Provided

  • Mill Test Certificate (EN 10204 3.1 / 3.2)
  • Third-Party Inspection Reports
  • NACE, IBR & PED Documentation
  • Export-Quality Packing List & Invoice
  • Raw Material Origin Certificates
Our Advantage

Why Choose STAINLESS INDIA for Monel Forged Fittings?

In-house Production

Rigorous quality assurance with complete in-house manufacturing control.

Global Exporter

Reliable supply chain exporting to over 70 countries with timely delivery.

Custom Solutions

Availability of custom sizes, specific grades, and third-party inspections.

Competitive Pricing

Best-in-market pricing with flexible low minimum order requirements.

Export Packaging

Export-quality packaging accompanied by full technical documentation.

Certified Quality

Fittings compliant with ASME, ASTM, NACE, IBR, and PED standards.

Frequently Asked Questions – Monel Forged Fittings

They are utilized in offshore, marine, oil and gas, chemical processing, and environments with high corrosion where exceptional strength and resistance to corrosion are essential.

Monel 400: Offers outstanding corrosion resistance and possesses good mechanical properties.
Monel K500: Provides increased strength, hardness, and fatigue resistance due to the process of age-hardening.

Indeed. They are capable of withstanding seawater, acidic substances, alkalis, chlorides, and corrosion at high temperatures, making them suitable for demanding industrial environments.

All forged fittings are produced in accordance with ASTM B564 and ASME B16.11 standards, and they comply with international regulations including NACE, PED, and IBR.

Yes, we produce and maintain an inventory of forged fittings in both Monel 400 and Monel K500 grades.

Certainly. We can manufacture fittings according to your specific drawings. Additionally, we collaborate with SGS, BV, TUV, DNV, and other inspection agencies to provide third-party verification.

Type of Monel Forged Fittings Available

Monel Forged Fittings Manufacturer Monel 400 Socket Weld Fittings Monel K500 Threaded Fitting
ASTM B564 Forged Fittings Monel Elbows, Tees, Couplings Monel 400 BSP/NPT Fittings
Corrosion-Resistant Forged Fittings High-Pressure Monel Fittings Marine-Grade Forged Monel
Monel Union and Plug Fittings Monel 400 Forged Fittings Supplier Monel K500 Socket Weld Fittings
ASTM B564 Monel Fittings Monel Threaded Fittings Exporter Monel Alloy Forged Components

Global Export Network

We export to more than 70+ countries:

USA • UK • Germany • Italy • UAE • Saudi Arabia • Qatar • Oman • Kuwait • Singapore • Malaysia • Indonesia • Australia • South Africa • Brazil • Mexico • India

All Shipments Include:
  • Packing List
  • Invoice
  • MTC 3.1 / 3.2
  • Third-Party Inspection (TUV/LR/BV) if required
  • Heat Number Traceability

Request a Quotation Today

Looking for a dependable Monel Forged Fittings? We respond within 24 hours.
